FC30 tethered drone for carrying radar
FC30 tethered drone for carrying radar DJI FlyCart 30 tethered drone by MYUAV max. Flight height 240m

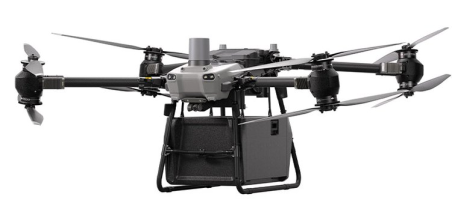

As a leader in the drone industry, DJI has continuously expanded the application field of drones through technological innovation and product iteration in recent years. Among them, the release of the FC30 tethered drone adds a strong competitor to the low-altitude logistics circuit. The FC30 adopts a 4-axis, 8-rotor multi-rotor configuration, with strong load capacity and long range, which makes it not only suitable for mountain, shore, rural transport scenarios and various emergency scenarios of material transport, but also shows great potential in specific fields such as radar applications.
In the field of radar, drones can provide a whole new way of viewing and data acquisition. While traditional radar systems are usually fixed in a certain position, the radar system carried by drones can move flexibly to detect and collect data in some hard-to-reach places.
1. Application scenario
Emergency response: In emergency situations such as natural disasters, where traditional communication and radar facilities may be damaged, the FC30 can be equipped with radar system to quickly arrive at the scene, carry out real-time monitoring and data transmission, and provide critical information for emergency response.
Terrain mapping: The radar system on the FC30 can be used for terrain mapping, especially in complex or steep terrain conditions, the advantage of unmanned aerial vehicles is particularly obvious, can provide high-resolution topographic maps and data analysis.
Environmental monitoring: In the field of environmental monitoring, the FC30 can regularly or irregularly conduct flight monitoring of specific areas, collect data on climate change, pollution sources, etc., and conduct in-depth analysis through radar systems.
Military reconnaissance: In military applications, the FC30's radar system can carry out missions such as border patrol and enemy facility detection, providing real-time ground intelligence support.
2. 30kW（including 240m tether cable）tether drone station

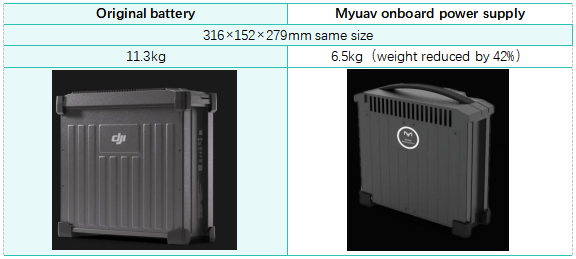

3. Original battery design onboard power supply

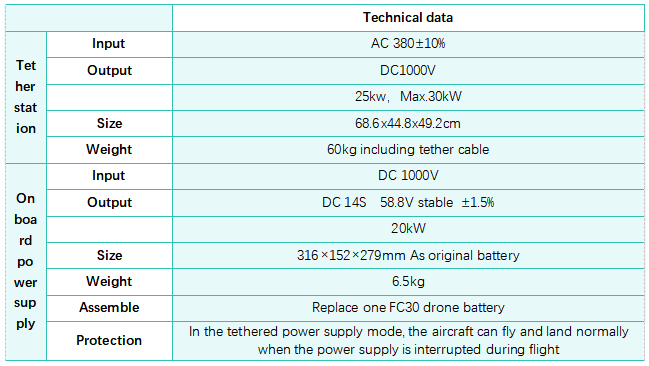

4. Technical data
5. MYUAV FC30 tethered system highlight
1. The base station uses the well-known power supply in the industry, and the isolation circuit design ensures the safety of high-voltage transmission
2. The base station only adopts the international standard 1000Vdc scheme, which is mature and reliable
3. The base station adopts redundant load design to ensure stable long-term power supply and long-term flight safety
4. The on-board power supply adopts ultra-precision voltage regulator circuit design, and the constant voltage regulator accuracy is ±1.5%, which is higher than the industry level
5. The onboard power supply is designed to be the same as the original battery. Replace a battery, plug our power and play
6. The onboard power supply adopts patent rain proof design, cooperating with FC30 UAV, fearless of wind and rain
7. The onboard power supply can work at full power for a long time, without derating or burning the machine
