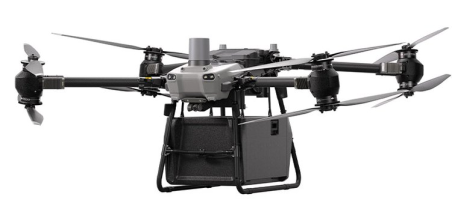

FC30 tethered drone for cleaning wall DJI FlyCart 30 tethered drone by MYUAV
FC30 tethered drone for cleaning wall DJI FlyCart 30 tethered drone by MYUAV max. Flight height 240m
1. Program overview
l The ground water is supplied to the pressure washer, and the drone is cleaned with the tube at a height of 50m
l Ground mooring base station to power DJI FC30 UAV
l The above ensures continuous cleaning for a whole day (2 pilots)
l The remote control water gun for cleaning and spraying is mounted under the UAV, and the water pressure can reach 220bar to strongly clean the curtain wall
l According to the calculation, the cost per square meter is about 1.5 RMB

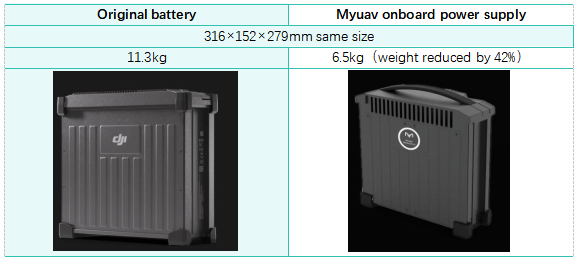

3. Original battery design onboard power supply

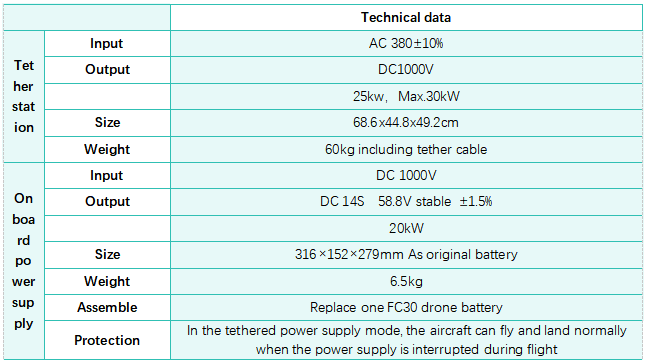

4. Technical data
5.MYUAV FC30 tethered system highlight
1. The base station uses the well-known power supply in the industry, and the isolation circuit design ensures the safety of high-voltage transmission
2. The base station only adopts the international standard 1000Vdc scheme, which is mature and reliable
3. The base station adopts redundant load design to ensure stable long-term power supply and long-term flight safety
4. The on-board power supply adopts ultra-precision voltage regulator circuit design, and the constant voltage regulator accuracy is ±1.5%, which is higher than the industry level
5. The onboard power supply is designed to be the same as the original battery. Replace a battery, plug our power and play
6. The onboard power supply adopts patent rain proof design, cooperating with FC30 UAV, fearless of wind and rain
7. The onboard power supply can work at full power for a long time, without derating or burning the machine
