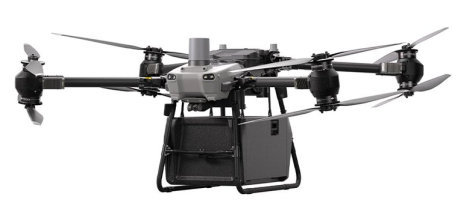

FC30 tethered drone for COM relay DJI FlyCart 30 tethered drone by MYUAV max. Flight height 240m

1.Main features of tethered UAVs carrying public network base station

Rapid deployment: Tethered drones can take to the air quickly and begin providing communications services within minutes, making them ideal for disaster response and emergency situations.

Wide coverage: Because the UAV can fly in the air, the public network base station carried by it can cover a large area, solving the problem that the ground base station is limited by the terrain.

Flexible deployment location: The UAV can be moved to different locations for service as needed, which is very flexible.

Long-term operation: Tethered drones are usually powered by the ground and can be operated continuously for a long time, not limited by battery life.

High capacity: Tethered UAVs with public network base stations can support simultaneous connection of a large number of users, which is suitable for communication needs in large-scale events or emergency situations.

2.Application Scenari

Natural disasters: After natural disasters such as earthquakes and floods, the traditional communication infrastructure may be destroyed, and the public network base station carried by the moored UAV can quickly restore the communication capability.

Large-scale events: During large-scale events such as concerts and sporting events, where conventional network capacity may be insufficient, tethered drones can help supplement network capacity and provide stable communication services.

Remote areas: Temporary or long-term communications services provided by tethered UAVs are useful in remote or difficult-to-construct fixed communications base stations.

3. 30kW（including 240m tether cable）tether drone station

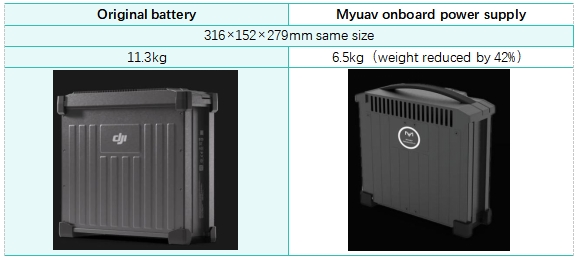

4. Original battery design onboard power supply

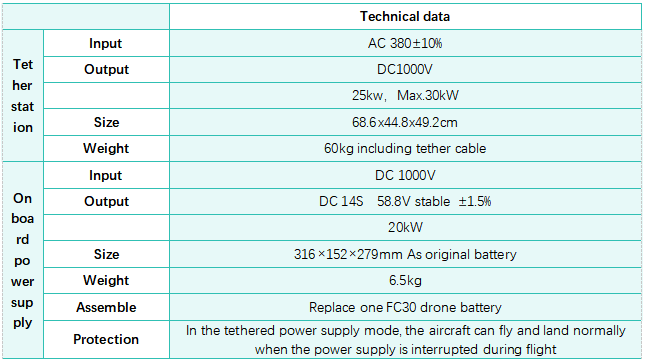

5. Technical data

6.MYUAV FC30 tethered system highlight

1. The base station uses the well-known power supply in the industry, and the isolation circuit design ensures the safety of high-voltage transmission

2. The base station only adopts the international standard 1000Vdc scheme, which is mature and reliable

3. The base station adopts redundant load design to ensure stable long-term power supply and long-term flight safety

4. The on-board power supply adopts ultra-precision voltage regulator circuit design, and the constant voltage regulator accuracy is ±1.5%, which is higher than the industry level

5. The onboard power supply is designed to be the same as the original battery. Replace a battery, plug our power and play

6. The onboard power supply adopts patent rain proof design, cooperating with FC30 UAV, fearless of wind and rain

7. The onboard power supply can work at full power for a long time, without derating or burning the machine
