Description
Lightweight Tethered UAV System
System Model：M3.5
1. System Configuration
1. 12S UAV
2. 3.5kw 12S Airborne Power Supply
3. 220VAC, 120m Tethered UAS Base Station
2. Constituent Parameters

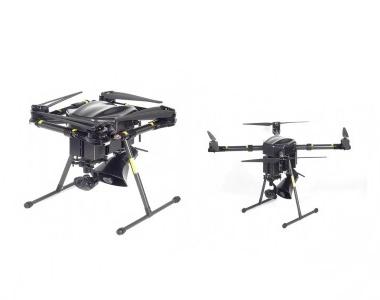

l UAV
Model MH5
Material Carbon Fibre + Aerospace Aluminium Alloy
Number of rotors 4 rotors
Wheelbase ≤1000mm
Expanded size (mm) 760*760*440
Folding size (mm) 450*450*440
Empty weight ≤6KG (without battery)
Maximum load ≤5KG
Maximum take-off weight ≤18.2KG
Maximum flight speed ≤18m/s
Maximum ascending speed ≤5m/s
Maximum descent speed ≤4m/s
Maximum take-off altitude 3000m
No-load endurance ≥40min
Positioning system GPS positioning
Power system High efficiency FOC power
Propeller size 24 inch folding propeller
Power Battery 12S 22000mAh*1
Charger Intelligent super fast charger
Remote control Sharpness 1920*1080 all-in-one display 5.5 inch screen
Standby time of remote control 8-12 hours
Transmission distance 5km-10km (upgradeable)
Safety wind speed ≤6
Working temperature -20℃ to 50
Body protection grade IP65

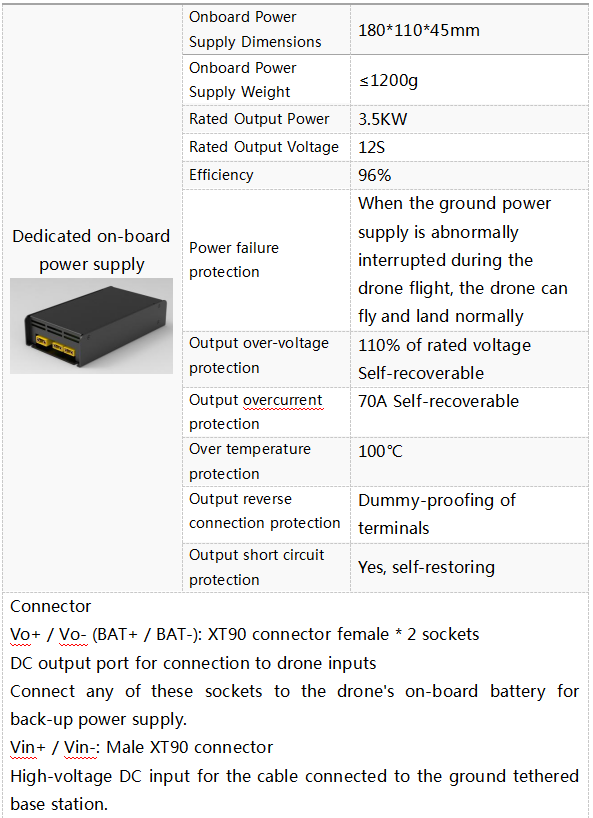

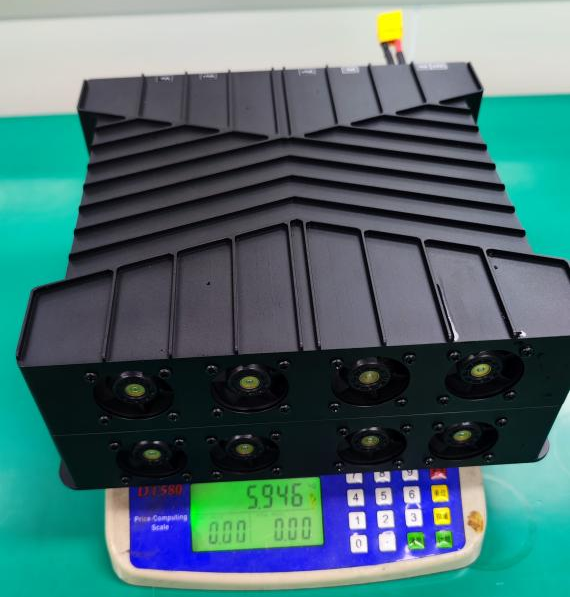

l Air Power Supply
l Tethered Base Station
Ground Power All-in-One | Parameter |
External Dimensions | LxWxH 46.5x24x44cm 22 inch trolley case size |
Weight | Approx. 24kg (including cable) |
Cable | 120 metres |
Rated Input Voltage | 220 VAC+10% |
Rated Output | LG55-400VDC 5.5kw LG70-750 VDC 7kw |

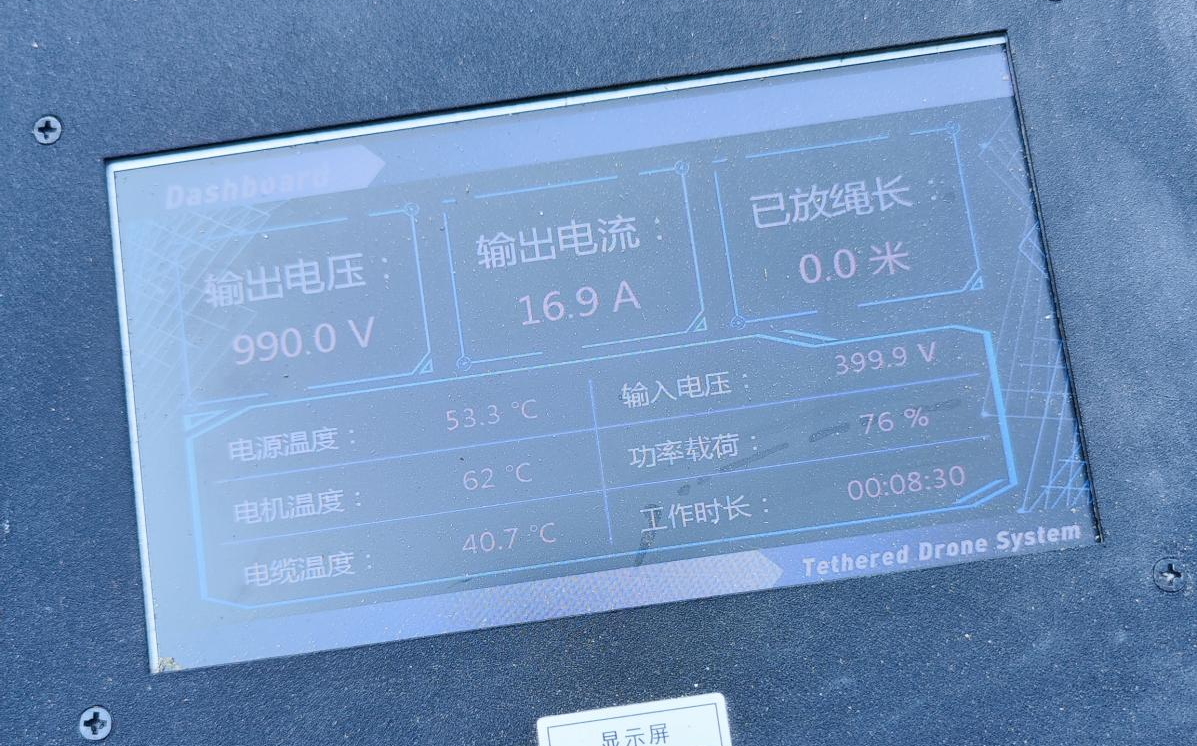

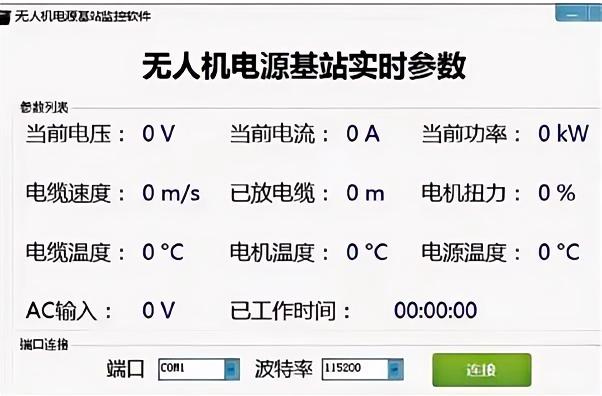

Function | ※ Power start one-touch start, automatic voltage compensation ※ Internal menu displays voltage, current, cable length and temperature. ※ Over-current, over-voltage, short-circuit and over-temperature protection. ※ Over-current, over-voltage, short-circuit, and over-temperature protection ※ With observation window for manual cable rewinding and rewinding without power supply. ※ Protection class: IP43, aviation aluminium-magnesium alloy T5. |
