System model: M9K

Version: V03

Issue: 2023-09-10

System Configuration

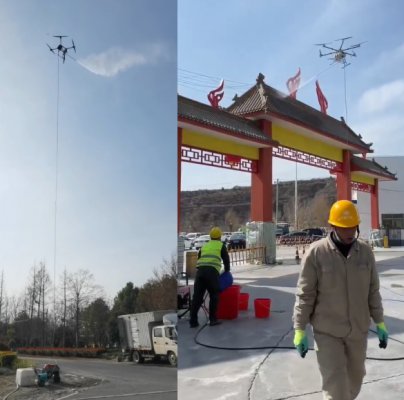

1. 30L net load UAV complete set (30m height)

2. High pressure washer

Detailed parameter

l Drone technical indicators

ü Product material: carbon fiber + aviation aluminum alloy

ü Rotor type: six-rotor (tethered customization)

ü Wheelbase: 1930mm

ü Expanded size: 1760*2020*720

ü Folding size: 1000*1100*720

ü Empty weight: 26.8KG (including battery weight)

ü Maximum load: 30kg

ü Maximum take-off weight: 56.8kg

ü Positioning system: GPS positioning

ü Height fixing system: barometer height fixing

ü Power system: FOC power

ü Propeller: 34-inch high-efficiency folding propeller

ü Hovering time: no load 38.5mins, operating time 18mins

ü Safe wind speed: ≤Level 6

ü Maximum flight speed: ≤10m/s

ü Intelligent operation mode: manual/automatic route

ü Standard remote control: integrated remote control with screen*1

ü Standard smart battery: (16S 28000mah)*1

ü Standard charger: one charge

ü Maximum flight speed: ≤10m/s

ü Power monitoring: support

ü Voice broadcast: support

ü Flight data recording: supported

ü Image transfer: support

ü Background data monitoring: support

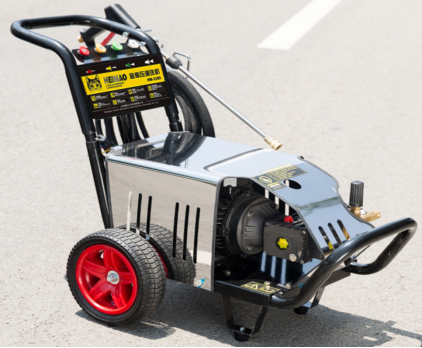

l washing machine

ü Dimensions: 745x450x500mm

ü Power: 2KW

ü Voltage: 220V

ü Rated pressure range: ≥2.5MPa and ≤25MPa

ü Range: 8m

ü Rated flow: 10L/min (inclusive)-15L/min (

ü Suction distance: less than or equal to 2.5M

ü Motor cooling method: air cooling

ü Water pipe length: 30 meters

ü Generator: not included (you need to prepare your own generator or other power supply method to power the generator)
