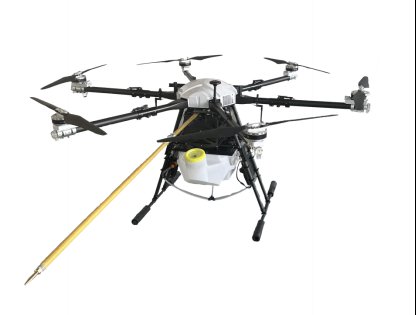

100m high Wall cleaning tether drone system
Model number. M12K

Version：V04

Date：2024-02-10

l System Configuration

1.30L load drone with cleaning complete set

2.12KW airborne power supply

3.110m tether drone base station

l Specification

l Drone

ü Size (unfolding status, without paddle leaves) 1970mm*1720mm*950mm

ü Size (folding state, no paddle leaves) 1200mm*1100mm*950mm

ü Wheelbase 1950mm

ü Maximum take -off weight (including mounting down) 66kg

ü RTK/GNSS uses frequency band RTK: GPS L1/L2, glonass F1/F2,

ü Beidou B1/B2 GNSS: GPS L1, Glonass F1, Beidou B1, Galileo E1

ü Maximum flight radius (no interference, no obstruction) 10km

ü The maximum can withstand the wind speed level 6

ü Maximum pitch angle 20 °

ü The maximum horizontal flight speed 20m/s

ü Maximum flight altitude 5000m

ü The longest flight time is 45min

ü Recommended working environment temperature -20 ℃ ~ 60 ℃

Inexbusting lock system

ü Capital avoidance method millimeter wave radar

ü The range of locking is 0 ~ 10M

Cleaning and spraying system

ü Nozzle high -pressure nozzle head

ü Number of nozzles 1

ü Maximum pressure of wisdom control supercharged water pump 3MPa

ü Maximum spray flow 5L/min

ü The operating box volume 30L

Flying camera

ü FPV camera perspective angle 100 °

ü FPV camera resolution 1080p 25FPS

Battery

ü Battery weight 18kg

ü Battery discharge coefficient 10C

ü Battery capacity 50000mAhhh

ü Battery charging speed 2C

ü Charging voltage 67.2V

ü Named voltage 59.2V

ü remote control

ü Display 5.5 inches

ü Weight 530g

ü System configuration Android10.0

ü Built -in software H12 assistant

ü Size (the antenna is closed) 190*152*94 mm

ü Built -in battery 10000mA/H

ü Quick charge protocol Type-C

ü IP protection level ip53

ü Endurance 6-20 hours

ü Working environment temperature -10 ℃ ~ 55 ℃

ü Work frequency 2.400-2.483GHz

ü The effective distance of the signal (no interference, no block) 5-10km

ü Remote control charging method Type-C

ü Remote control charging time 0.5 hours
