MYUAV MESH 70km high-power tethered drone communication test
Test target
It is applied to communication coverage under forest terrain, cooperates with customers to test MESH broadband self-organizing network radio, and uses MYUAV tethered drone relay to achieve real-time video backhaul within 70km coverage.

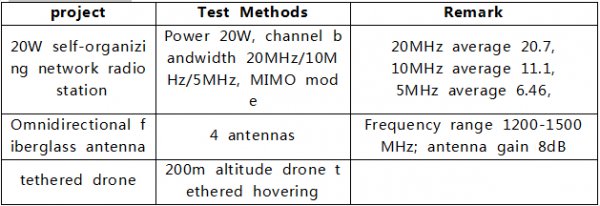

Test Equipment

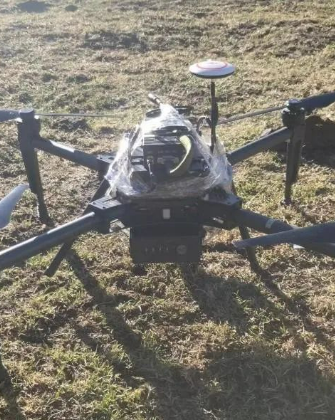

Test Results
Channel bandwidth: 20MHz, the transmission rate is recorded as follows:
Point | Average rate | Maximum speed | Audio and video stability |
Radio A | 20.07Mbps | 22.1Mbps | very stable |
Radio B | 20.06Mbps | 21.7Mbps | very stable |
Channel bandwidth: 10MHz, the transmission rate is recorded as follows:
Point | Average rate | Maximum speed | Audio and video stability |
Radio A | 11.1Mbps | 11.6Mbps | very stable |
Radio B | 11.0Mbps | 11.7Mbps | very stable |
Specification

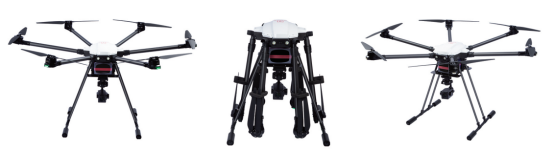

l Drone technical indicators
Features:
1. Can support 5 channels of load at the same time
2. The drone can carry up to 7kg
3. Front FPV lens
4. Adopt 12S power system
5. The battery is installed using quick release guide rails
6. Modular unibody
Basic parameters of UAV | |
project type | parameter |
aircraft type | Hexacopter |
Rack material | Industrial nylon + carbon fiber |
Arm storage method | Umbrella fold |
aircraft wheelbase | 1290mm |
Battery compartment height from the ground | 460mm |
pitch | 2490mm |
Machine weight | 15kg |
maximum takeoff weight | 22kg |
Battery | 6S 6000mAh*2 |
Maximum wind resistance | 13m/s |
Image transmission solution | Pictures and numbers integrated |
Communication distance | 7km (unobstructed) |
Image transmission frequency point | 2.4GHz |
Operating temperature | -20—60℃ |
GPS | Dual GPS/RTK |
Positioning accuracy (GPS) | ≤0.5m |
Positioning accuracy (RTK) | ≤0.3m |
maximum flight speed | 25m/s |
maximum climb speed | 10m/s |
maximum descent speed | 6m/s |
maximum angular velocity | 120°/s |
maximum flight angle | 30° |
FPV | Standard configuration |
Dual GPS | Standard configuration |
Remote control with screen | Standard configuration |
Mounting method | Standard quick release |
Body waterproof level | IP65 |
n Tethered system
l onboard power supply
Dedicated onboard power supply
| 180×110x45mm |
≤1150g | |
3.5KW | |
12S | |
96% | |
When the ground power supply is abnormally interrupted during the flight of the drone, the drone can fly and land normally. | |
110% rated voltage can be restored automatically | |
70A self-restorable | |
100℃ | |
Terminal foolproof | |
Yes, self-recovery possible |

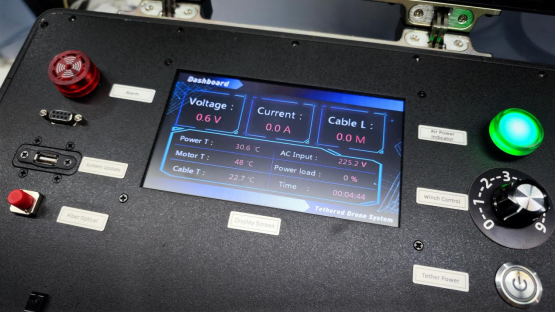

l tethered base station
l Dimensions | 60*45*38cm all-metal shock-proof and anti-collision military-grade structure |
l Power supply | AC220V power supply The continuous flight time is not less than 8hrs |
l Tethered height | 200 meters |
l Automatic retracting and unwinding system | Automatic take-up and pay-off function |
l advantage | 1. One-button power start, automatic voltage compensation (*software patent) 2. The internal menu can display the voltage, current, cable length and temperature. 3. Equipped with overcurrent, overvoltage, short circuit, and overtemperature protection (*multiple independent patents) 4. Comes with built-in observation window, can be manually retracted, and can be retracted without power supply 5. Anti-ground wire design 6. Protection level: IP43 |
weight | 40kgs tethered base station |
